Standard: IEC60269-2,GB/T13539.2
Protection: gL/gG
Rated Voltage: AC400V, AC500V, AC690V
Breaking Capacity: 100kA
Fuse Link: 10x38mm
Wire Range: AWG 20-8 / 0.52-8.4 mm2
CE Approve
|
Item number |
RT18-32 |
|
Rating |
690V, 32A, 1Pole , 2Pole, 3Pole, 4Pole |
|
Size |
72.0x35.0x56.0 mm (LxWxH) |
|
Wire Size |
AWG 20-8 / 0.52-8.4 mm2 |
|
Fuse |
10x38 mm Fuse |
|
Item No. |
Poles (P) |
Length (L) |
Width (W) |
Height (H) |
|
RT18-32 -1P |
1 |
72.0 mm |
17.5 mm |
56.0 mm |
| RT18-32 -2P |
2 |
35.0 mm |
||
| RT18-32 -3P |
3 |
52.5 mm |
||
| RT18-32 -4P | 4 |
RT18 Series allow higher voltage (690V). They provide safe operation and convenience in installation. Fuse can be installed or replaced easily without screwing, and there is an embedded rail adapter for 35mm Din Rail.
Product Pictures
|
Item No. |
RT18-32 -1P |
RT18-32-2P | RT18-32 -3P | RT18-32 -4P |
|

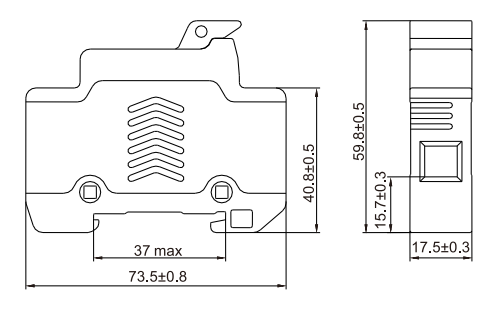

Specifications / Dimensions |
|
|
|
|
|
Length (L) |
72.0 mm |
72.0 mm |
72.0 mm |
72.0 mm |
|
Width (W) |
17.5 mm |
35.0 mm |
52.5 mm |
52.5 mm |
|
Height (H) |
56.0 mm |
56.0 mm |
56.0 mm |
56.0 mm |
|
Poles |
1 |
2 |
3 |
3 |
|
Rated Toque [in-lb] |
17 in-lb |
17 in-lb |
17 in-lb |
17 in-lb |
|
Electrical Specifications |
|
|
|
|
|
Rated Voltage |
690V |
690V |
690V |
690V |
|
Rated Current |
32A |
32A |
32A |
32A |
|
Wire Size (AWG) |
#8-20 AWG |
#8-20 AWG |
#8-20 AWG |
#8-20 AWG |
|
Wire Size [mm2] |
0.52~8.4 mm2 |
0.52~8.4 mm2 |
0.52~8.4 mm2 |
0.52~8.4 mm2 |
|
Materials |
|
|
|
|
|
Body Materials |
PBT |
PBT |
PBT |
PBT |
|
Color |
White |
White |
White |
White |
|
Flame Retarded Grade |
UL 94V-0, V-2 |
UL 94V-0, V-2 |
UL 94V-0, V-2 |
UL 94V-0, V-2 |
|
Temperature [℃] |
120℃ |
120℃ |
120℃ |
120℃ |
|
Accessories & Parts |
|
|
|
|
|
Ava Fuse Specifications |
10x38 mm Fuse (13/32" x 1 1/2") |
10x38 mm Fuse (13/32" x 1 1/2") |
10x38 mm Fuse (13/32" x 1 1/2") |
10x38 mm Fuse (13/32" x 1 1/2") |
|
Indicators |
N/A |
N/A |
N/A |
N/A |
|
DIN Rail Adapter |
Embedded |
Embedded |
Embedded |
Embedded |
|
Ava. DIN Rail |
TA-001A, TA-001S (35 mm Din Rail) |
TA-001A, TA-001S (35 mm Din Rail) |
TA-001A, TA-001S (35 mm Din Rail) |
TA-001A, TA-001S (35 mm Din Rail) |
|
Ava. End Clamp |
TA-002, TA-002H, TE-002, TE-002H, TF-ECL, TF-ECH |
TA-002, TA-002H, TE-002, TE-002H, TF-ECL, TF-ECH |
TA-002, TA-002H, TE-002, TE-002H, TF-ECL, TF-ECH |
TA-002, TA-002H, TE-002, TE-002H, TF-ECL, TF-ECH |
|
Approval |
RoHS |
