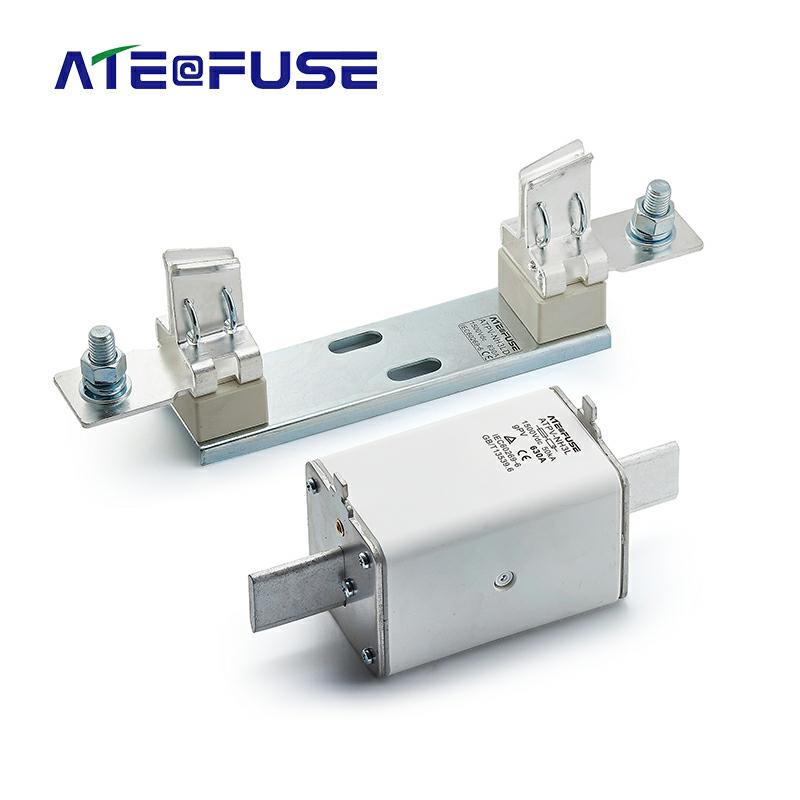

ATPV-NH3XL 1500VDC Solar PV Fuse Link

Name: ATPV-NH3XL 1500VDC Solar PV Fuse Link
Brand: Aite
SKU: 00065
Rating: 4.1 (83 reviews)

ATPV-NH3XL 1500VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse ink with an NH3L standardized size can protect 1500VDC Photovoltaic (Py) systems effectively. ATPV-NH3L 1500VDC Solar PV Fuse Link offers various ampere ratings from 125A to 630A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV Combiner box, PV array, PV Inverter DC input. Chinese fuse supplier Zhejiang Aite Electric Technology Co., Ltd. (Aitefuse) constantly developing and innovating high-level performance Solar PV Fuse products to meet the emerging needs of the Photovoltaic (PV) industry.

Features & Benefits

1500VDC Photovoltaic (PV) system available

125-630A ampere ratings available

Meets IEC60269-6 standard for global acceptance

Standardized NH3L construction

Low power dissipation design for high energy efficiency

NH screw mountable

50kA breaking capacity

Striker and microswitch available

Inquiry Download

Share to

Product Details

Production Description

1500VDC NH3L Solar PV fuse link

Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6

Class of Operation

gPV

Applications

• Combiner box

• PV array protection

• Inverters

• Re-combiner units

• In-line PV module protection

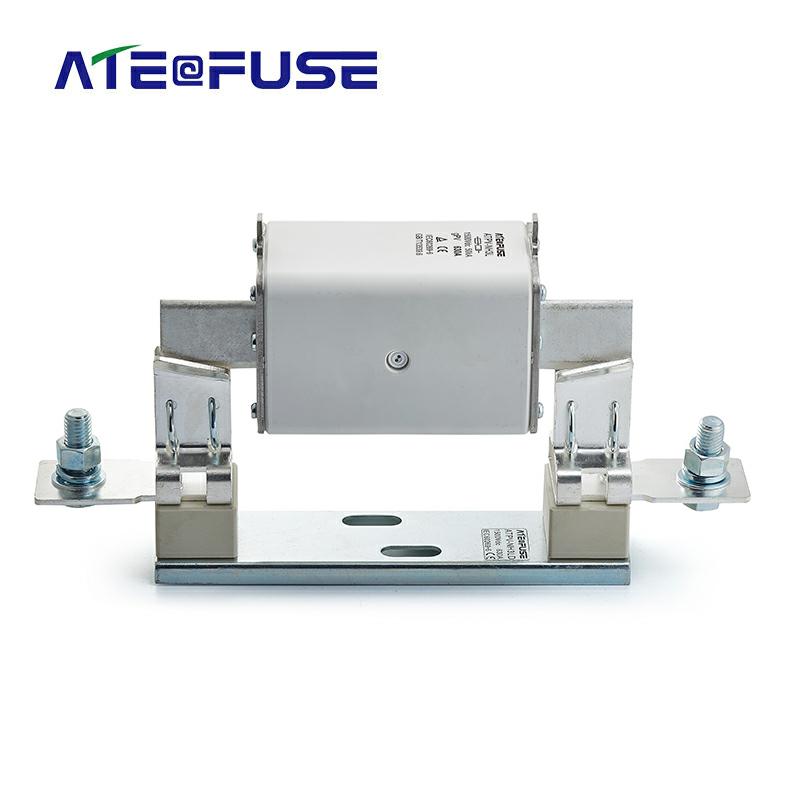

Recommended Fuse Holder

ATPV-NH3LD 1500VDC Fuse Base

Optional Accessories

Striker

Microswitch

Country of Origin

People's Republic of China

Fuse cold resistance and power dissipation

Serial number	Rated current（A）	Pre-arcing I2t	Total I2t	1In（W）
1	125	11660	54000	35
2	160	15700	72700	43
3	200	20660	95700	51
4	250	27200	125900	61
5	315	36100	166900	73
6	350	42800	198000	78
7	400	50800	235000	84
8	450	57100	265000	94
9	500	63500	294000	105
10	550	69800	323000	115
11	600	76100	353000	126
12	630	79900	369900	132

Dimension(mm)

Technical parameters

Fuse type	Rated Voltage	Rated Current (A)	Dimensions/Size (mm)
gPV	Rated Voltage	Rated Current (A)	Figure No.	A	B	C	D	E
ATPV-NH3L	DC1500V	63、65、70、75、80、90、100、110、125、160、200、250、300、315、350、400	1	68	150	25	75	89

Time-Current Characteristic

rated current (A)	Standard：IEC60269-6		Standard: UL248-19
rated current (A)	105%	135%	135%	200%
In≤30	＞1h non fusing	＜1h fusing	＜1h fusing	12-240s
30＜In≤60	＞1h non fusing	＜1h fusing	＜1h fusing	12-360s
60＜In≤100	＞2h non fusing	＜2h fusing	＜1h fusing	0-480s
100＜In≤200	＞2h non fusing	＜2h fusing	＜1h fusing	0-600s
200＜In≤400	＞3h non fusing	＜3h fusing	＜1h fusing	0-720s
400＜In≤630	＞4h non fusing	＜4h fusing	＜1h fusing	0-720s

Melting characteristic curve
