ATPV-63LDL 1500VDC DIN rail fuse holder with indicator

The ATPV-63LDL 1500VDC DIN rail fuse holder with indicator is specifically designed to protect the Photovoltaic (PV) systems. The recommended fuse link is 1500VDc 10x85mm, which secures the 1500VDC Photovoltaic (PV)systems. The most common applications of this ATPV-63LD 1500VDC 50A 10x85mm and 14x85mm PV Fuse is PV combiner boxes, inverters, Photovoltaic string, Photovoltaic array protection, etc. ATPV-63LD 1500VDC 50A 10x85mm and 14x85mm PV Fuse Holder was made of the material with VO flame-retardant standard, and its busbar mounting option can fit most installations in the Photovoltaic (PV) system.

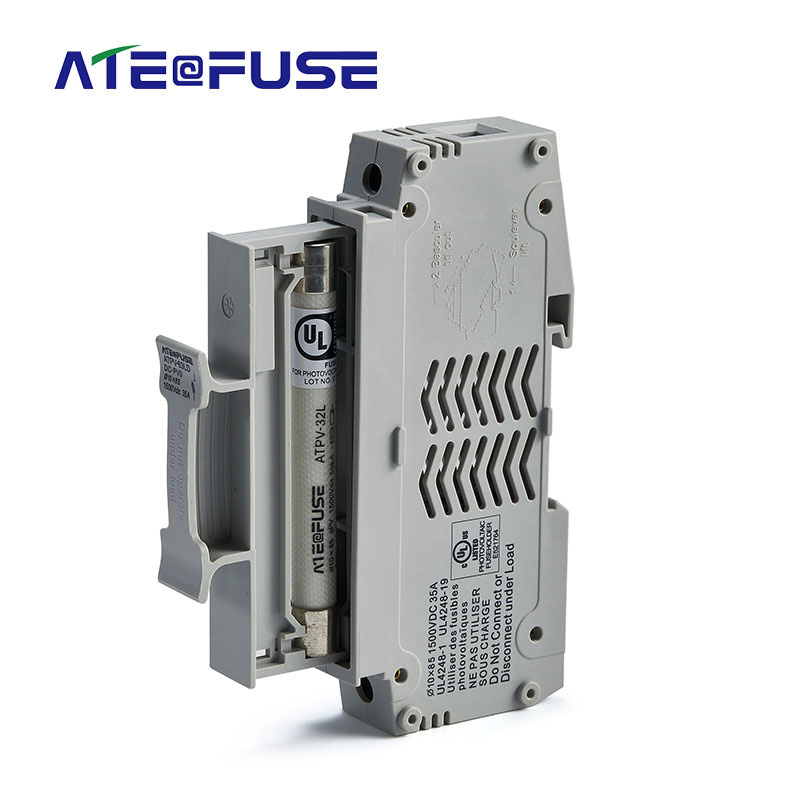

ATPV-63LD 1500VDC 50A 10x85mm And 14x85mm Solar PV DIN Rail Fuse Holder
ATPV-63LD 1500VDC 50A 10x85mm And 14x85mm Solar PV DIN Rail Fuse Holder
ATPV-63LD 1500VDC 50A 10x85mm And 14x85mm Solar PV DIN Rail Fuse Holder
ATPV-63LD 1500VDC 50A 10x85mm And 14x85mm Solar PV DIN Rail Fuse Holder
ATPV-63LD 1500VDC 50A 10x85mm And 14x85mm Solar PV DIN Rail Fuse Holder

Features & Benefits

ATPV-63LD 1500VDC 50A 10x85mm and 14x85mm Fuse Link recommended

1000VDC Photovoltaic(PV) system available

50A ampere ratings

Meets IEC and UL standards for global acceptance TUV, CE

Flame retardant shell with VO standard

Low temperature rise for better performance of the circuit protection

35mm DIN Rail mounting

No fuse pullers or tools required for fuse removal

50kA breaking capacity approved by TUV,CE

Inquiry Download
Share to
Product Details
Production Description

ATPV-63LD 1500VDC 50A 10x85mm and 14x85mm Solar PV fuse Holder



Approvals & Standards

IEC60947-1 and IEC60947-3

UL4248-1 and UL4248-19

GB/T14048.1 and GB/T14048.3



Class of Operation

gPV



Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Recommended Fuse Holder

Do not operate under load

Use 75℃ CU wire only



Country of Origin

People's Republic of China



Technical parameters

Fuse base model No.

Equipped with fuse size

Rated Voltage

Rated Current

Figure no.

Dimensions/Size(mm)

Dissipated power(W)

Remarks

ATPV-63LD

10×85

14×85

1500Vdc

50A

1

See figure 1

12.5W

Without indicator

ATPV-63LDL

10×85

14×85

1500Vdc

50A

1

See figure 1

12.5W

With indicator
